Front Caliper Rebuld Page 2/2

Page 1 and 2


Front Assembly

1) Here's all the parts laid out:


2) Make sure everything is nice and clean. Use denatured alcohol or clean brake fluid.

3) Using the grease that came with the rebuild kit, grease up the cylinder o-ring. And then place it in the cylinder.


4) Grease up the piston


5) And insert it in the cylinder. It may take some force to get it in there. But it should slide smoothly once over the seal.


6) Insert the new cylinder boot around the piston. Then insert its set ring that holds the boot in place.


7) Grease the outside of the collar and slide it into the cylinder.

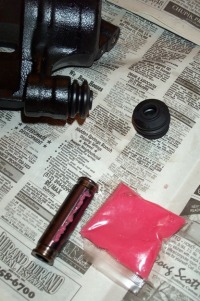

8) Grease one of the dust boots and insert it into the cylinder. Then grease up the slider.


9) Now, here's a little trick. Take the other boot, and place it backwards over one end of the slider.


10) Insert the end of the boot in the cylinder and slide the slider in place


11) Lock the boots in place over the ends of the slider. Repeat steps 7-11 for the other slider.



12) Reinstallation of the calipers on the car is opposite the removal. Make sure to bleed the brakes properly & thoroughly.

Back to Page 1 for reinstallation
