20V 'Blacktop' Project - Day 3
Removed the lights today and labeled the connectors.
| Headlight |
R/Y |
R/G |
R/Blue |
|
R. Turn Signal
L. Turn Signal |
|
|
|
|
| Daytime Running (DRL) |
W/Blk |
G |
|
|
| Fog |
W/Blk |
R |
|
|
R. Sidemarker
L. Sidemarker |
|
|
|
|

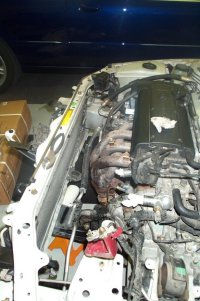

Also drained and removed the radiator & its fans.
| R Radiator Fan |
W |
Blue/R |
 |
| L Radiator Fan |
W/Blk |
Blk/R |
 |
And finally, I removed the intake. Notice the Intake Air Temperature Sensor.
Unplug it and put in a safe place so not to damage it.
| IAT sensor |
Brown |
Y/Blk |
 |
|
)
)
)
)
)
